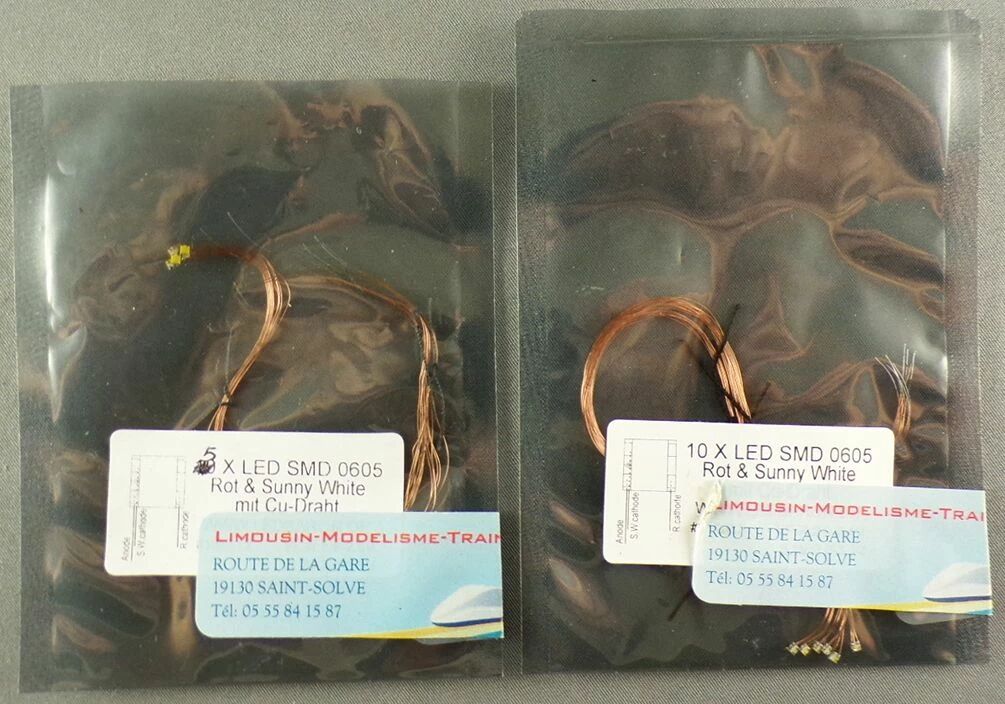

LMT 0605 Ho 15 x Led Bicolor Pre-wired White Warm Tone/Red Locomotive Lighting Mint New

Set of 15 pre-wired 0605 bi-color LEDs with enameled wire. These LEDs have three soldered wires: 2 cathodes (-) and one anode (+). The blue wire is common to both LEDs, the red wire is for red color, and the other wire is for white. Color: warm white/red. Enameled wire length: 140 mm. Gauge: 0.1 mm. To easily recognize the connection, the cathode (-) wires are about 10 mm shorter than the anode (+) wire.

LED dimensions: Length: 1.6 mm - Width: 1.5 mm - Height: 0.8 mm - Luminous intensity: 1000 mcd - Consumption: 20 mA - Forward voltage: 3.1V for white and 1.9V for red. Sold without resistors.

These ultra-mini LEDs can be used in many areas (lighting for steam locomotive lanterns, Y8000 and Y7000 lights, cabin lighting, vans, HO scale cars wherever space is limited).
